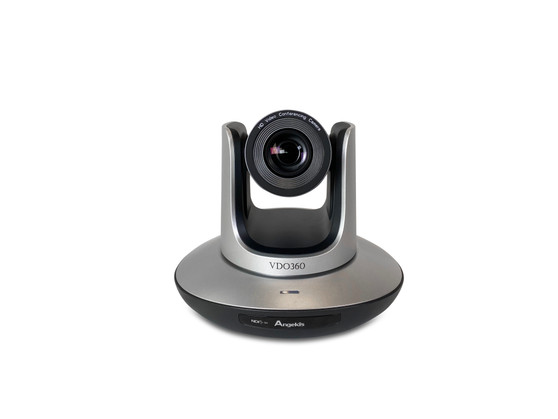

VDO360 - Saber20X NDI

• Saber20 NDI Camera
• Ethernet cable enables video, audio, control, tally, and power
• IR remote control, used to set IP address via OSD menu as well as full camera function control
• User manual

Features:

• Most advanced ISP, 1/2.8 inch 5MP sensor, providing users crystal clear video.
• 20x Optical Zoom , with 60.5 degree field of view - ideal for large space AV solution.
• IP Video Streaming, includes both H.264 and H.265 video encoding
• 1080p 60 full HD video over NDI|HX, 3G-SDI, HDMI, USB output video simultaneously.
• WDR, 3D Ambient Noise Reduction feature
• Power over Ethernet: one single CAT5/6 cable for video, control, tally, and power
• Live RTSP streaming, for direct YouTube Live and Facebook Live
• Unique Focusing Algorithm: fast and precise focusing performance when zooming or moving,
• Smooth PTZ mechanical design, accurate pan and tilt motor control
• Up to 128 presets
• Standard Sony VISCA, IP VISCA, PELCO-P, PELCO-D control protocol; IP VISCA over both TCP and UDP
• Daisy chain supported
• Image flip function, supporting inverted installation
• Supplied with IR remote control, use to set IP address via OSD menu as well as full camera function control
• Support multiple browsers to view video such as IE, Chrome, Firefox, Safari in both Mac and Windows system.

Model Number:

• Saber20X NDI

Sensor:

• 1/2.8 inch, 5 megapixel high quality Sony CMOS sensor

Video Format:

HDMI

• 1920 x 1080p 60/50/30/25
• 1280 x 720p 60/50/30/25
• 1920 x 1080i 60/50

NDI/HX

Main stream:

• 1920 x 1080p /60/50/30/25
• 1280 x 720p 60/50/30/25
• Sub stream:
• 1280 x 720p 60/50/30/25
• 1024 x 576p 60/50/30/25
• 640 x 360p 60/50/30/25

SDI

• 1920 x 1080p60/50/30/25
• 1280 x 720p60/50/30/25
• 1920 x 1080i60/50

USB

• USB3.0:
• 1920 x 1080p 60/50/30/25
• 1280 x 720p 60/50/30/25
• 1024 x 576p 30
• USB2.0:
• 1024 x 576p 30
• 960 x 540p 30
• 640 x 360p30
• 352 x 288p30

Zoom:

• 20x optical zoom

FOV:

• 60.5°

F.no. Wide:

• F1.5(Wide)~3.0(Tele)

Focal Length:

• f=5.2(near)~98mm(far)

Preset:

• 10 via remote controller; 128 via serial port; preset precision:0.1°

Rotation Angle:

• Pan: -170° ~ +170°
• Tilt: -30° ~ +90°

Rotation Speed:

• Pan: 0°~120°/s
• Tilt: 0°~80°/s

Control Port:

• NDI | HX/ RS232 / RS485

Video Port:

• NDI | HX/3G-SDI/HDMI/USB3.0

Network Speed:

• 1000M

Noise Reduction:

• 2D & 3D

SNR:

• >50dB

Minimum LUX:

• 0.01 LUX

White Balance:

• Auto / Manual/AWT/One Push/Indoor/Outdoor

Anti Flicker:

• 50Hz/60Hz/OFF

D/N Mode:

• Supported

Gamma:

• Supported

Mirror Image:

• Supported

Pan - Tilt - Flip:

• Supported

Iris:

• Auto / Manual

Electric Shutter:

• Auto / Manual

BLC:

• Auto / Manual

Focus:

• Auto / Manual

Video Encoding:

• H.264/H.265

Bit Rate Control:

• Variable Bit Rate, Constant Bit Rate

Video Bit Rate:

• 1024Kbps~10240Kbps

Frames:

• 50HZ:1fps~30fps 60HZ:1fps~30fps

IP Protocol:

• TCP/IP, HTTP, RTSP, ONVIF, DHCP, VISCA over IP (TCP&UDP), HDMIL5

POE:

• Supported

Input Voltage:

• DC12V, 2A

Physical Specs:

• 220 mm × 173 mm ×190 mm
• 1.25 kgs (2.8 lbs)
